Videohome® Movieshow PC to TV converter (VGA to S-video/RGB/Composite)-The
“MovieShow” is the cost effective solution for watching your PC or
Notebook content
on a big TV screen.
If
your TV is not so advance and has no VGA connection in built, you can
now play
PC games, surf the net on TV, and play DVD movies from PC ‘s VGA
connector to
TV’s S-video or RGB connector.

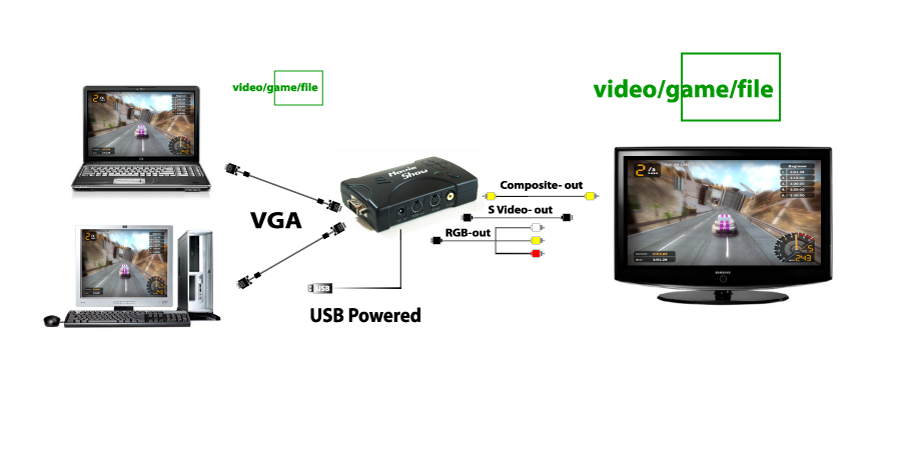

The
device accepts graphic signal from PC (VGA) signal and converts them
into video
format (Composite, S-Video or RGB).
It
provides high resolution video quality. It is powered by USB port of
your PC or
Notebook. Easy Plug & Play and resolution detection makes it
especially
suitable for Notebook users. MovieShow is the bridge between your TV and
PC.
Features:
Instant Plug & Play, no software drivers required
Powered by USB, no power adaptors are required, compatible with all
USB1.1 and
2.0
Multi TV system Support NTSC, PAL video.
32 Bit True color quality
OSD ( on-screen-display ) function, for convenient control function.
Supports Maximum resolution of 1920x1200
Supports scan rates modes for 100Hz, 85ZHz, 75Hz and 60Hz
Simultaneous display on both TV screen and PC monitor
Supports Composite video, S-video and analog RGB
3 x zoom function support, best for presentation
Horizontal/Vertical scaling and positioning
Sharpness control
Brightness control.
Contrast control
Freeze/Un-Freeze video control
Supports screen pause.
Auto-Saving for control parameters
Specifications:
.Input
signal: VGA display card
.Horizontal
frequency: 31.469KHz – 91.146KHz
.Vertical
frequency : 50Hz – 100Hz.
.Display
mode upto : 800x600 100Hz, 1024x768 85Hz, 1152x864 75Hz,
1280x1024
85Hz, 1600x1200 75Hz, 1920x1080 70Hz, 1920x1200. 60Hz

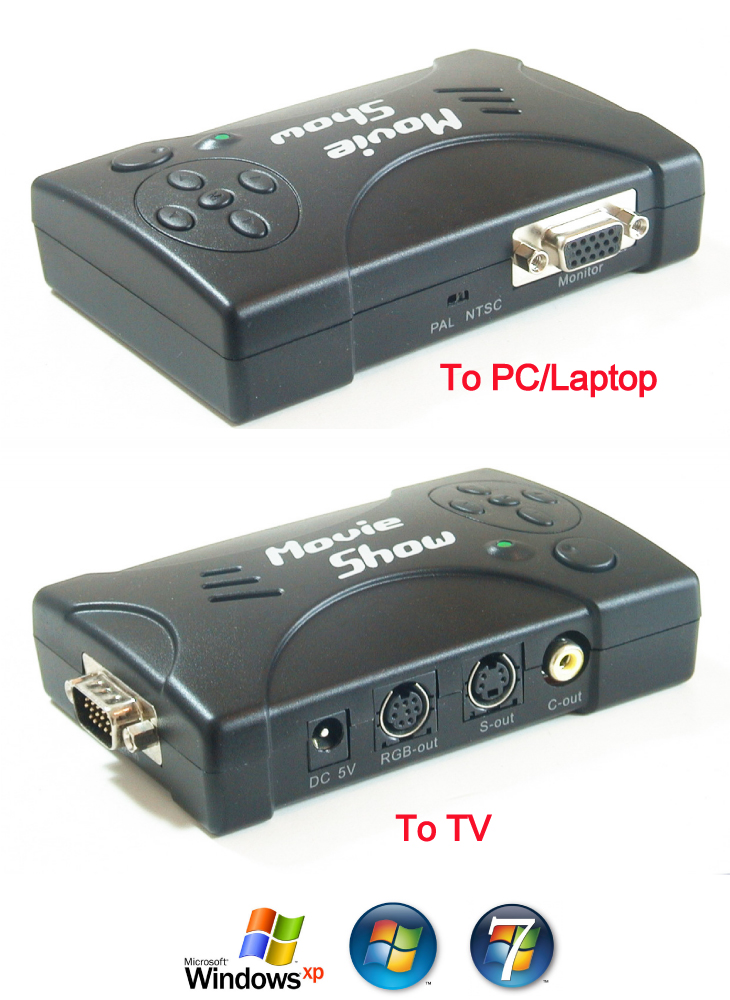

.Output
signal: Composite video, S-video, Analog RGB video, Computer monitor
pass-thru
.Power
input: USB port 5VDC 450mA
.Dimension:
113mm x 75mm x 28mm
.Weight:
around 120g
.Compliance:
FCC
class B and CE

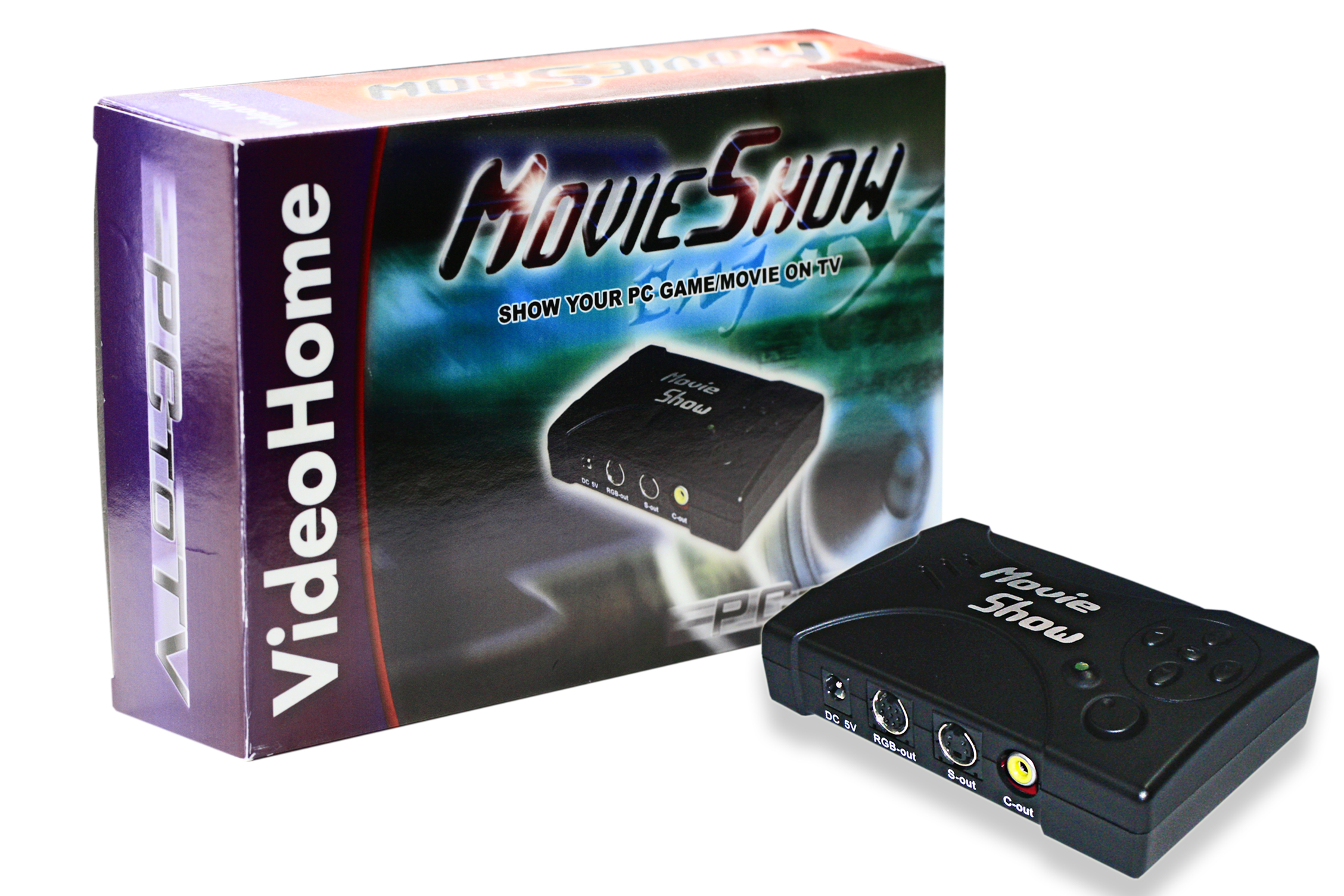

Package Contents:
.“MovieShow”
converter
.User’s
manual.
.15-pin
HD extension cable
.RCA
Video cable
.S-Video
cable
.USB
power Cable
System
Requirement:
.IBM
PC or compatibles
.TV
set or Video input device with Composite video, S-VHS connector
